Verification artifacts for CMMs

Verification and calibration artifacts for contact systems and optical systems

Innovalia Metrology manufactures 2D and 3D ball artifacts up to 1.5m corner to corner spacing, to perform extremely fast interim checks of CMMs, equipped with contact systems and optical systems.



Tetrahedron (for contact systems)

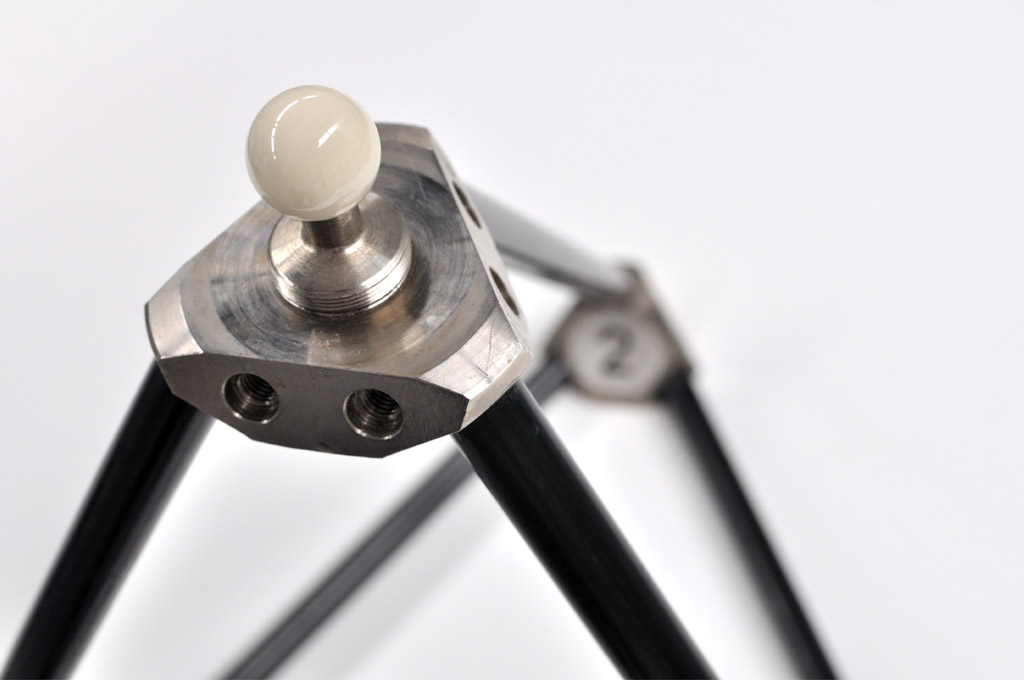

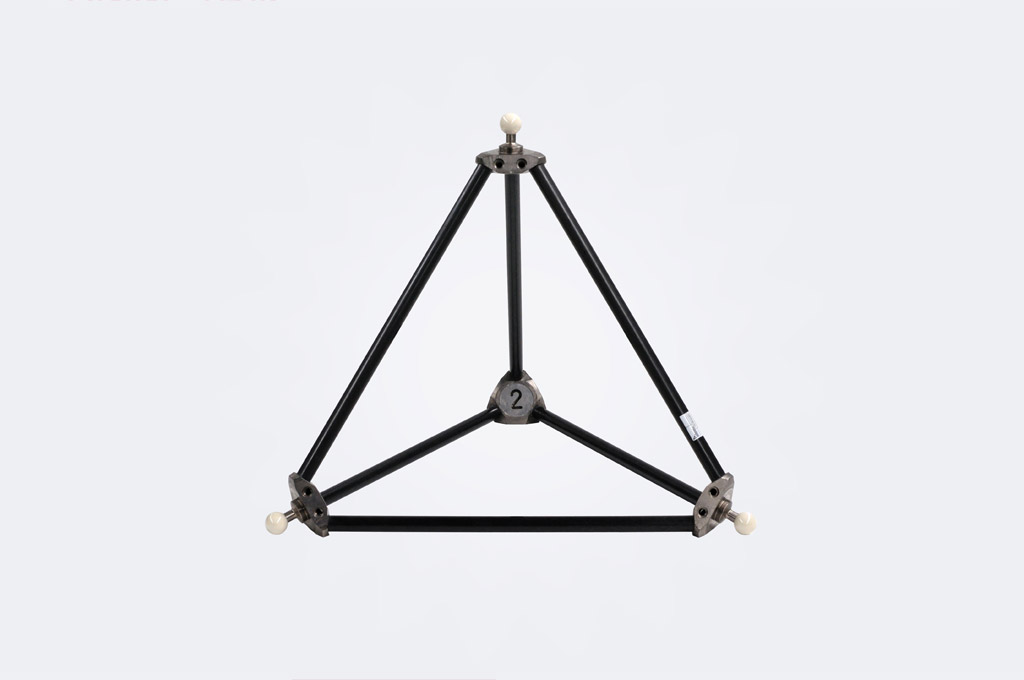

  • tetraedro-contacto



Technical information

  • TETRA-CHECK 400 – 400mm.
  • TETRA-CHECK 650 – 650mm.
  • TETRA-CHECK 900 – 900mm.
  • TETRA-CHECK 1500 – 1500mm.



    Download The Brochure:



    Tetrahedron (for optical systems)

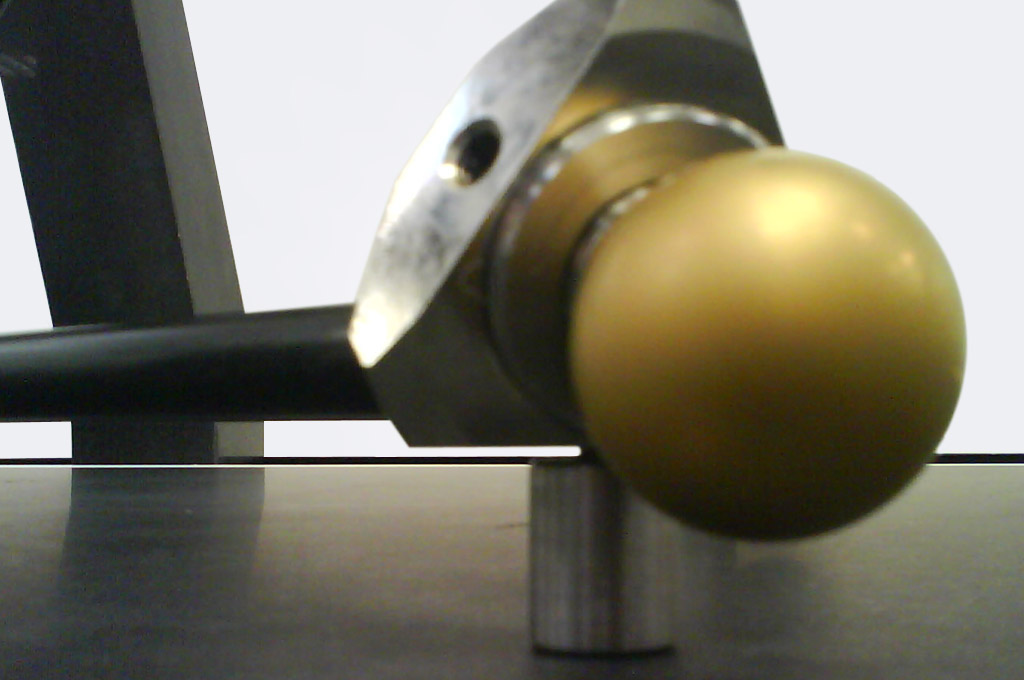

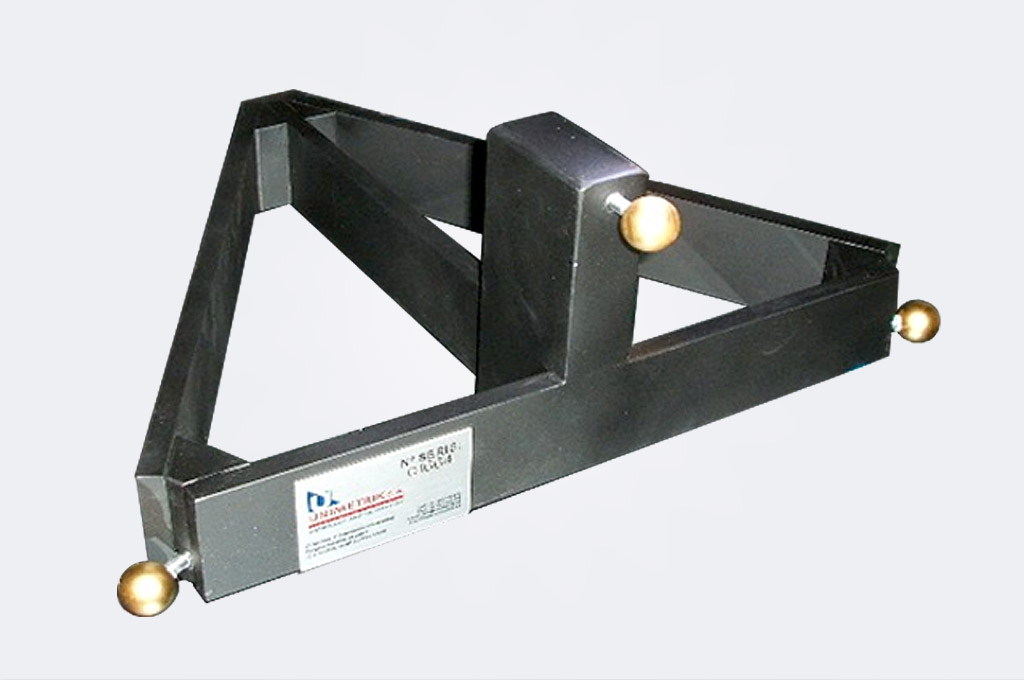

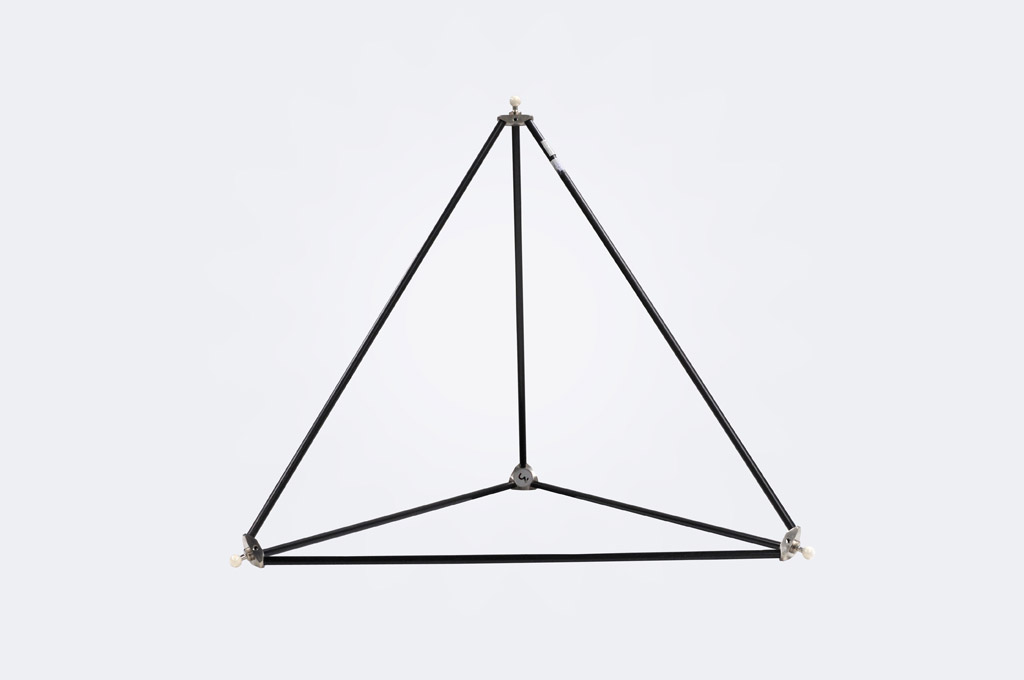

    • tetraedro_optico_01



    Technical information

    • TETRA-CHECK 400 – 400mm.
    • TETRA-CHECK 650 – 650mm.
    • TETRA-CHECK 900 – 900mm.
    • TETRA-CHECK 1500 – 1500mm.



      Download The Brochure:



      Ball bars (for contact systems)

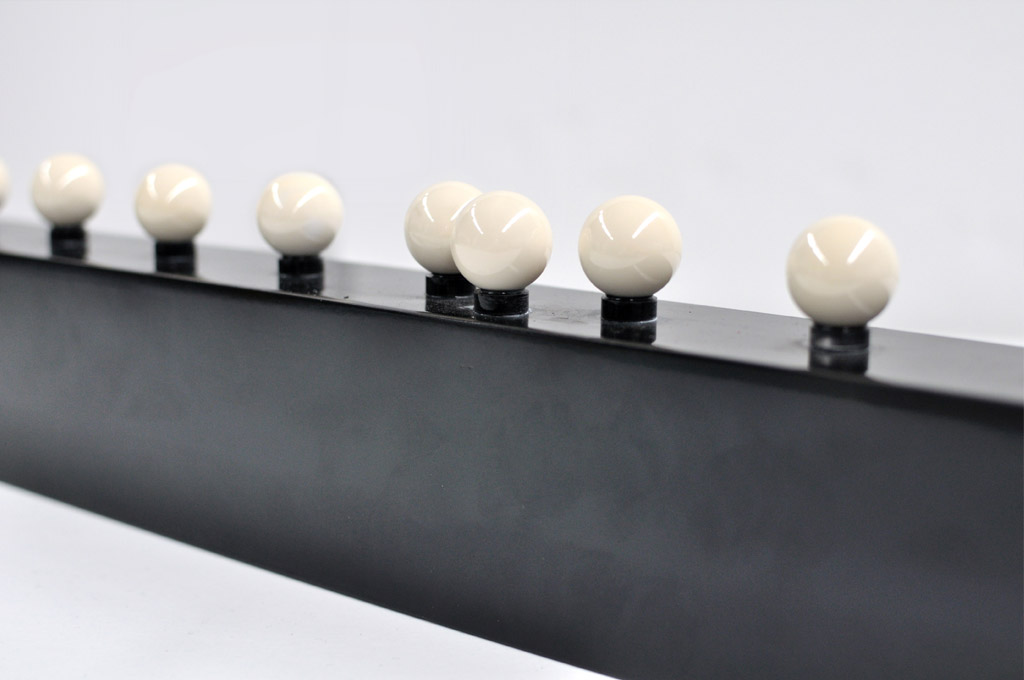

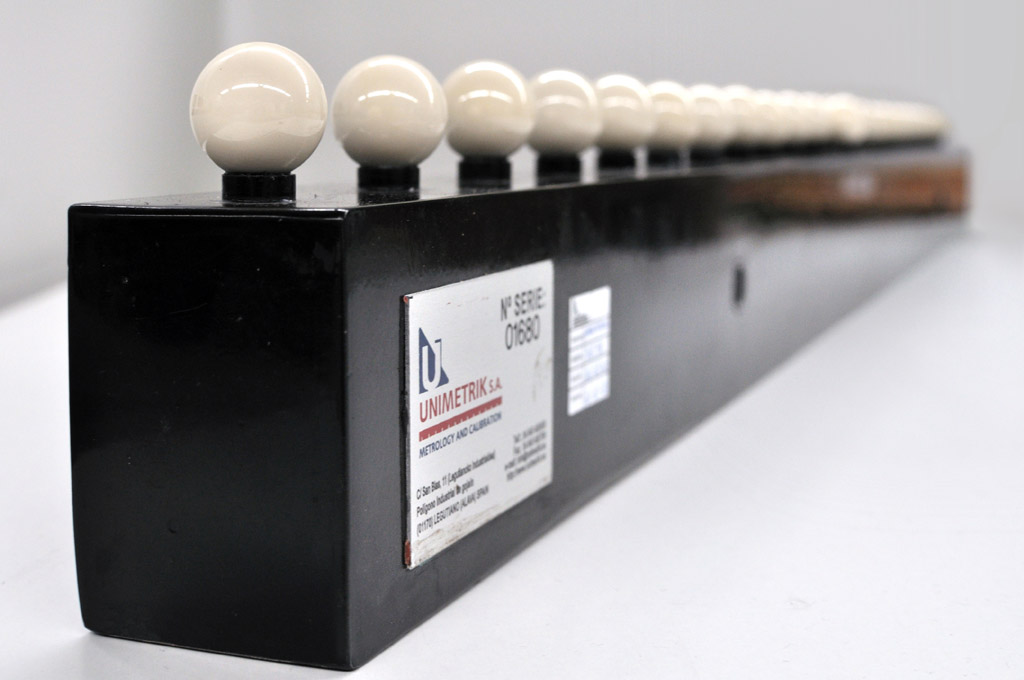

      • barrabolas_contacto



      Technical information

      • BAR-CHECK 500 – 500mm.
      • BAR-CHECK 1000 – 1000mm.
      • BAR-CHECK 1500 – 1500mm.
      • BAR-CHECK 2000 – 2000mm.
      • BAR-CHECK 2500 – 2500mm.
      • BAR-CHECK 3000 – 3000mm.
      • BAR-CHECK 4000 – 4000mm.
      • BAR-CHECK 5000 – 5000mm.



        Download The Brochure:



        Ball bars (for optical systems)

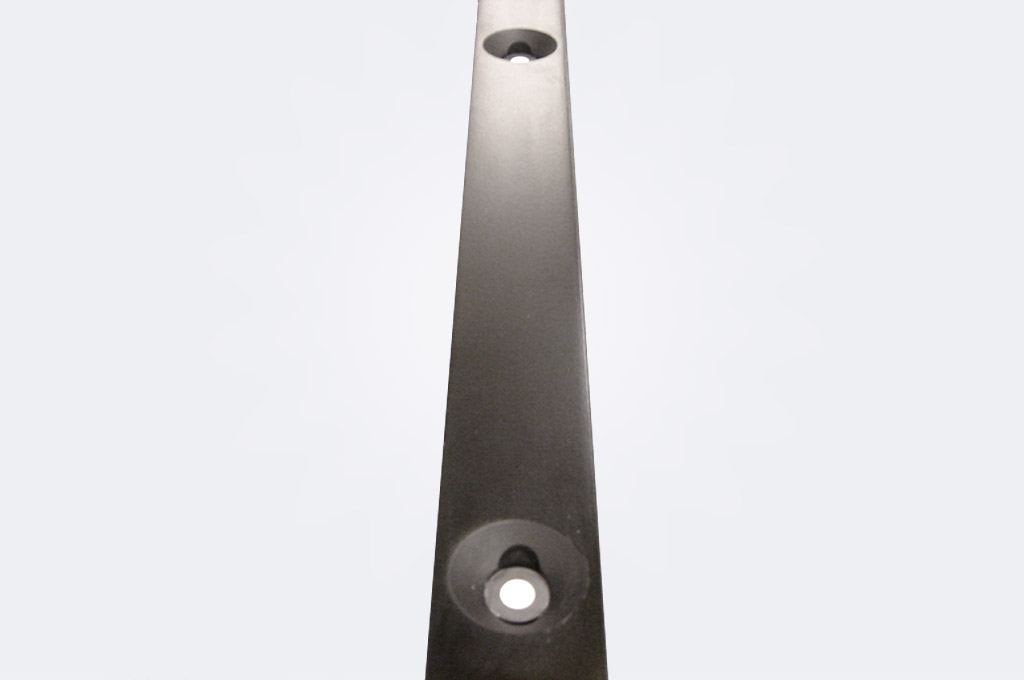

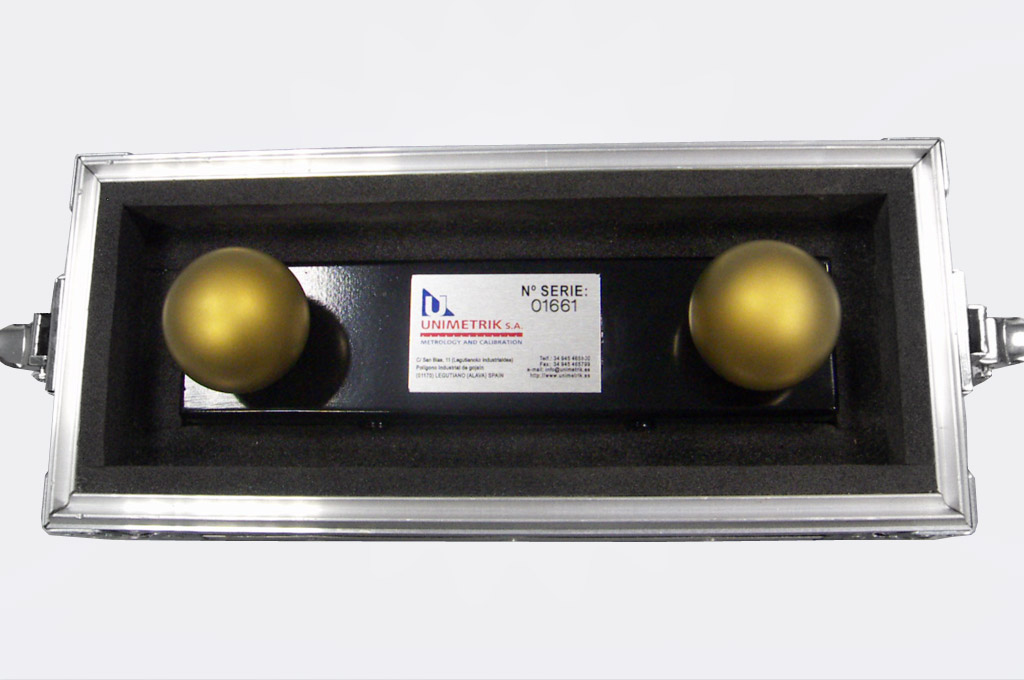

        • barrabolas_optico_02



        Technical information

        • BAR-CHECK 500 – 500mm.
        • BAR-CHECK 1000 – 1000mm.
        • BAR-CHECK 1500 – 1500mm.
        • BAR-CHECK 2000 – 2000mm.
        • BAR-CHECK 2500 – 2500mm.
        • BAR-CHECK 3000 – 3000mm.
        • BAR-CHECK 4000 – 4000mm.
        • BAR-CHECK 5000 – 5000mm.



          Download The Brochure:



          Calibration cubes

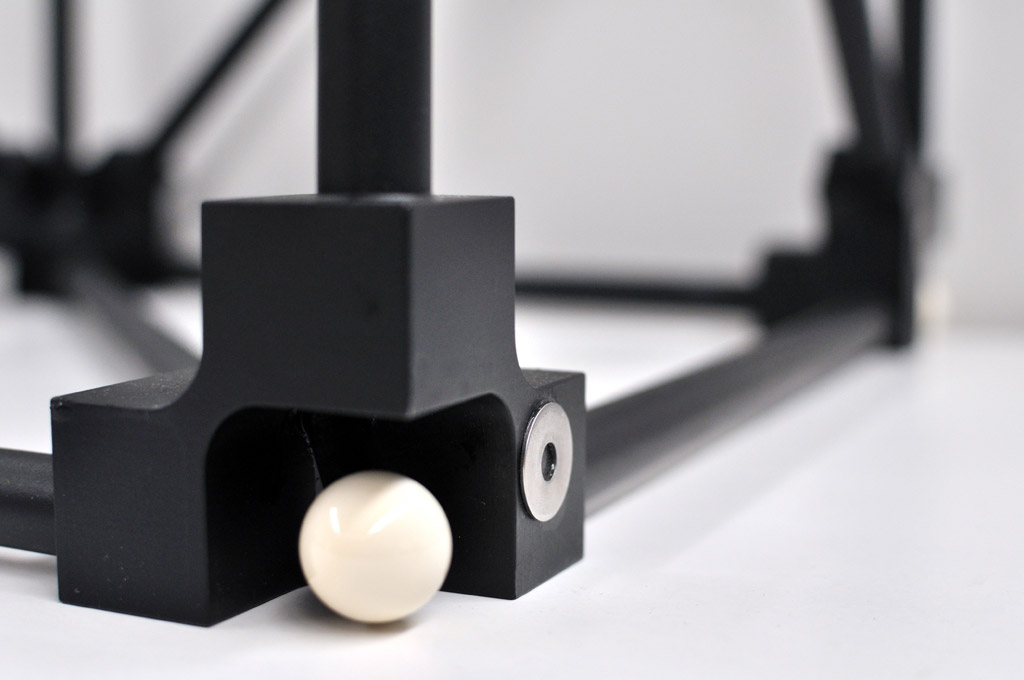

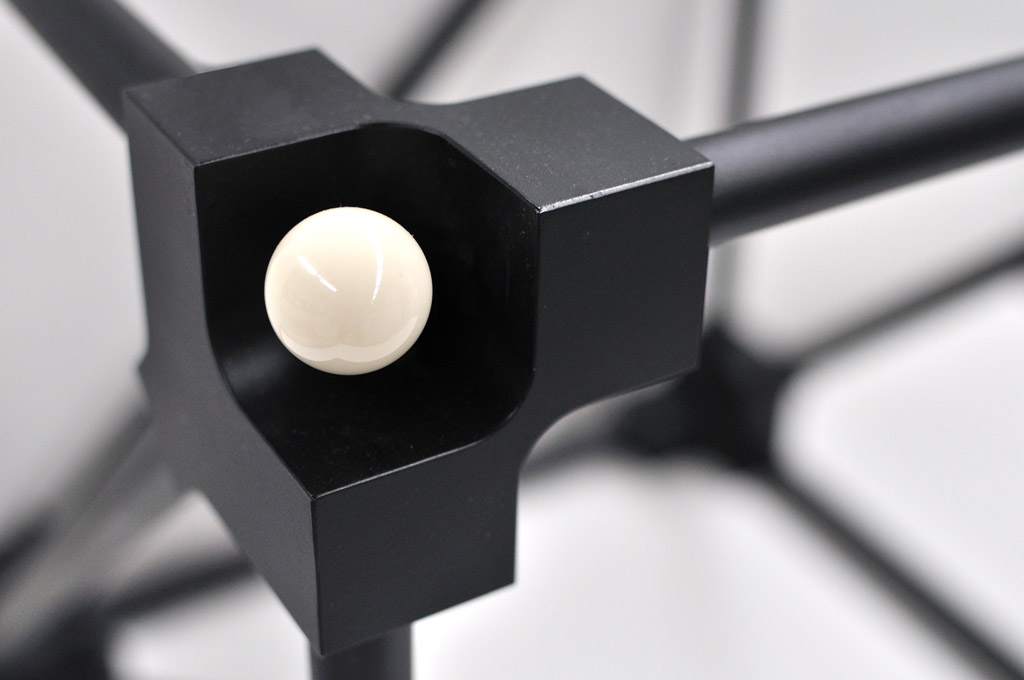

          • cubo contacto



          Technical information

          • High end “interim check”
          • Error corrections of CMMs
          • CUBE-CHECK 400 – 400 mm.
          • CUBE-CHECK 500 – 500 mm.
          • CUBE-CHECK 600 – 600 mm.
          • CUBE-CHECK 850 – 850 mm.



            Download The Brochure:



            Ball plates

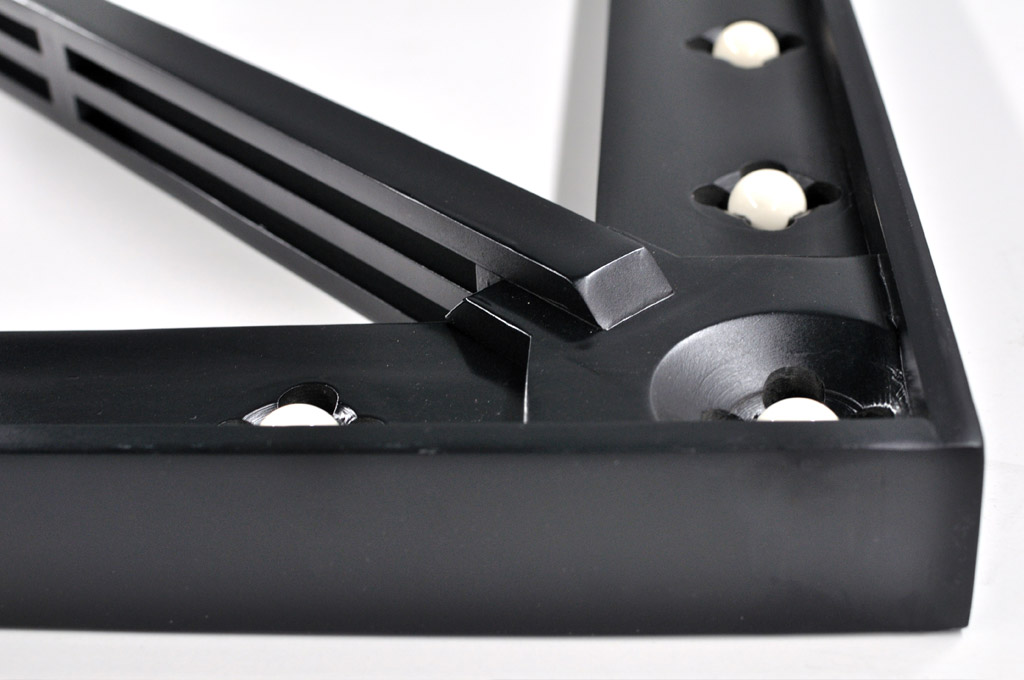

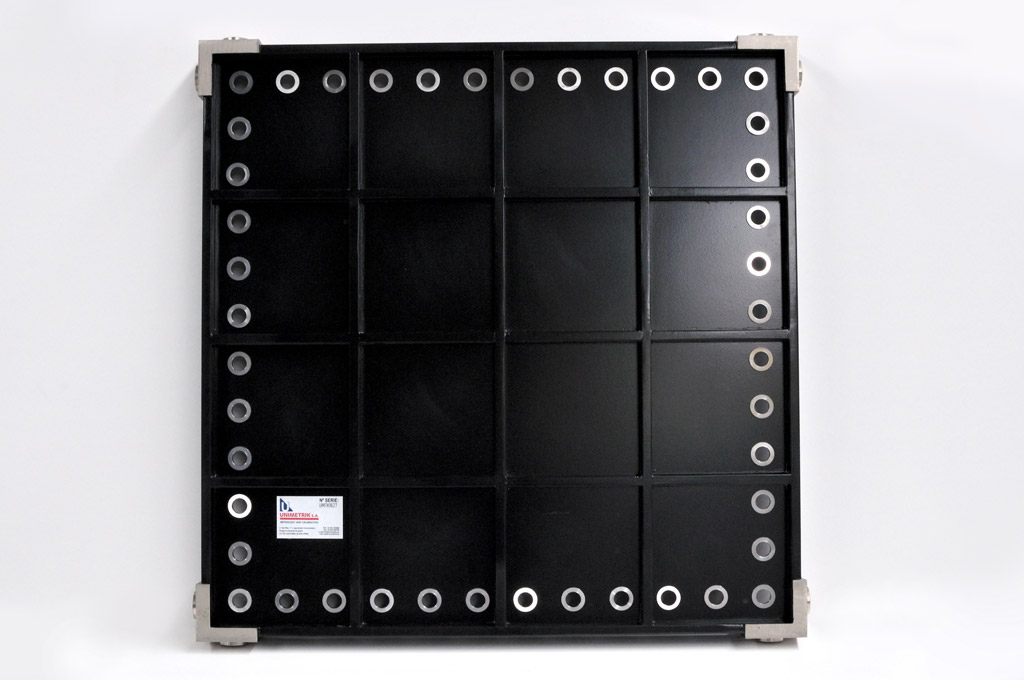

            • placa contacto



            Technical information

            • High end “interim check”Full scale CMM error correction
            • PLATE-CHECK 1000 – 1000 mm.



              Download The Brochure:
